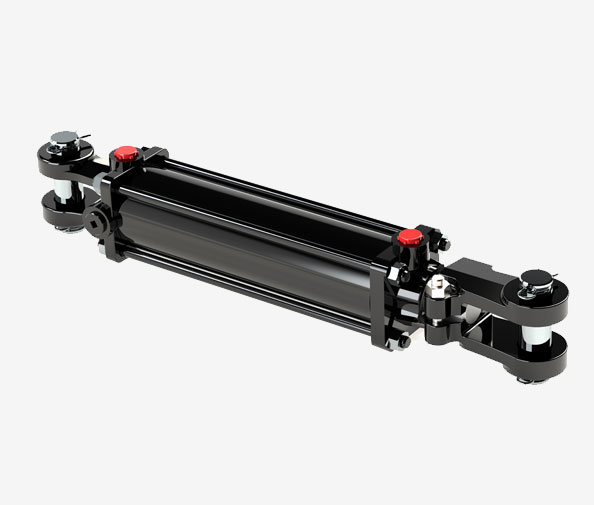

Tierod Cylinders
Double-acting tie-rod hydraulic cylinders providing powered force in both directions—the standard, proven design for industrial and mobile applications.
Bi-Directional Power & Control
Double acting tie-rod cylinders provide powered force in both extend and retract directions using hydraulic pressure. They're a standard, proven design for industrial and mobile applications requiring controlled motion and consistent output throughout the stroke. The tie-rod construction offers easy serviceability and secure end-cap retention for medium to heavy-duty use.
How They Work
Bi-Directional Force
Pressure applied alternately to either side of the piston provides extend and retract force.
Tie-Rod Construction
Tie-rods clamp the head and cap to the barrel, maintaining structural integrity under load.
Flow & Cushion Control
Flow controls regulate speed; cushion valves absorb end-of-stroke energy.
Port & Sensing
Ports connect to extend/retract circuits; optional position sensing provides feedback.
Internal Sealing
Seals prevent internal leakage between pressure chambers for efficient operation.
When to Use
Ideal applications for tie-rod cylinders
Applications requiring powered motion in both directions
Vertical, horizontal, or inverted orientations
Systems where precise positioning or load control is needed
Medium to high-duty cycles in manufacturing, agricultural implements, or automation
When a repairable, standardized cylinder design is preferred
Custom Engineering
We design and manufacture tie-rod cylinders tailored to your specific requirements and applications.
- Long-Stroke & High-PressureVariants for demanding applications
- Non-Standard MountsCustom rod ends and mounting configurations
- Corrosion-ResistantWashdown configurations for harsh environments
- Integrated FeedbackMagnetostrictive or LVDT position sensing
- Multi-Cylinder SyncMatched synchronization assemblies
Key Benefits
- Bi-directional power: Full control in both directions
- Serviceable design: Replaceable seals and components
- Standardized dimensions: Easy interchangeability
- Wide compatibility: Works with hydraulic systems and accessories
- Proven strength: Long service life when maintained properly
Operating Envelope
- Pressure: Up to 210 bar (3,000 psi)
- Speed: Up to 0.5 m/s
- Temperature: −20°C to +80°C (extended ranges available)
- Media: Mineral oil (HLP); water-glycol/fire-resistant on request
Industry Applications
Tie-rod cylinders power critical operations across diverse industries
Agricultural
Machinery and construction equipment
Automation & Robotics
Precision motion systems
Machine Tools
Presses and fixtures
Material Handling
Lifting systems
Injection Molding
Forming machines
Conveyors
Diverters and stoppers
Mobile Equipment
Actuators and controls
Marine & Energy
Industrial systems
