Telescopic Cylinders
Multi-stage hydraulic cylinders providing long stroke capability within a compact retracted length—ideal for dump trucks, trailers, and tipping systems where full stroke in limited space is essential.

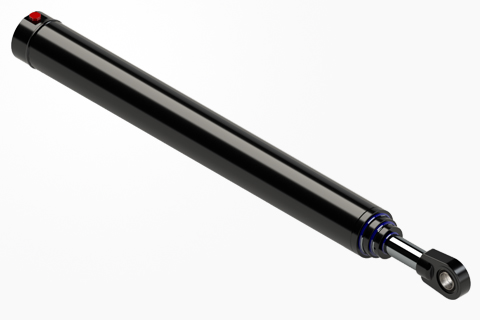

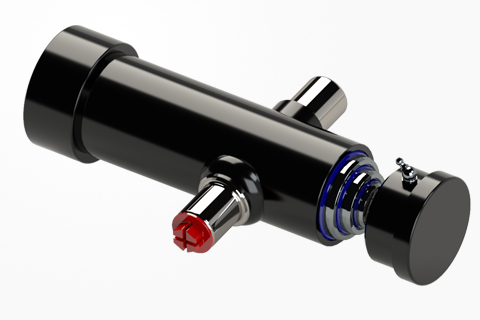

Long Stroke, Compact Design
Telescopic hydraulic cylinders provide long stroke capability within a compact retracted length. They extend in multiple stages using nested tubes and hydraulic pressure, delivering smooth, high-force motion for lifting and dumping applications. Available in single- or double-acting types, they are ideal for mobile and tipping systems where full stroke in limited space is essential.
How They Work

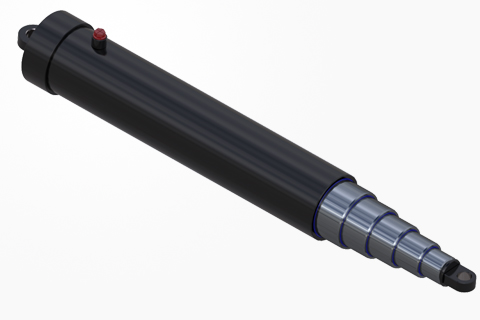

Sequential Extension
Multiple stages extend sequentially under hydraulic pressure, each stage sliding from within the next.
Single/Double Acting
In single-acting versions, gravity or load weight retracts the stages; double-acting types use pressure in both directions.
Internal Sealing
Internal seals and bearings guide and seal between stages.
Sequential Flow
Porting is designed to control oil flow to each stage in sequence.
End-of-Stroke Cushioning
Optional cushions slow end-of-stroke impact.
When to Use
Ideal applications for telescopic cylinders
Applications requiring long extension with limited retracted length
Dump trucks, trailers, and tippers
Material handling or lifting systems where compact retraction is key
Mobile and industrial equipment needing large motion from a small space envelope
Lifting, tilting, or raising systems with heavy loads
Custom Engineering
We design and manufacture telescopic cylinders tailored to your specific requirements and applications.
- Non-Standard RatiosNon-standard stroke ratios and stage counts
- Marine-Grade MaterialsCorrosion-resistant or marine-grade materials
- Position SensingIntegrated position sensing and synchronization
- Harsh Environment SealsSealing systems for abrasive or dirty environments
- OEM IntegrationCustom mounts and hydraulic connections for OEM integration
Key Benefits
- Long stroke: From compact retracted length
- High extension ratio: Up to 6:1 typical
- Durable design: For high-cycle mobile applications
- Single/double acting: Available in both configurations
- Low maintenance: With sealed, welded construction
- Smooth transition: Smooth stage transition and controlled extension
Operating Envelope
- Pressure: Up to 300 bar (4,350 psi)
- Speed: Up to 0.3 m/s
- Temperature: −20°C to +80°C
- Media: Mineral hydraulic oil (HLP); biodegradable and fire-resistant fluids available
Industry Applications
Telescopic cylinders power long-stroke operations in space-constrained environments
Dump Trucks
Trailers and refuse vehicles
Agricultural
Tipping systems
Construction
Mining dumpers
Scissor Lifts
Platforms
Container Handling
Tilt beds
Marine & Dockside
Lifting systems
Industrial
Lift tables
Compact Hoists
Custom solutions
FAQs
Frequently Asked Questions
Need more help?
Ready to Move Forward?
Request a Quote
Share stroke, bore, stages, load, orientation, speed, pressure, and environment.
Get Quote
