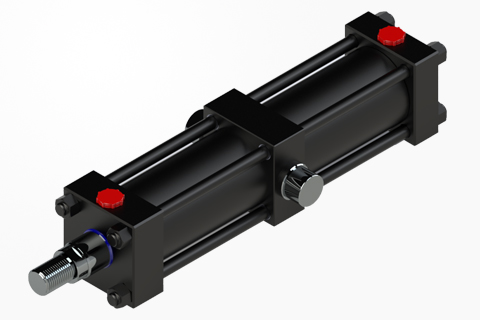

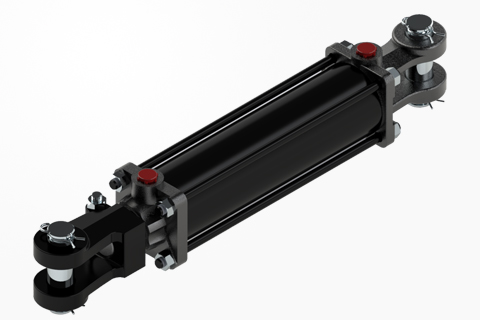

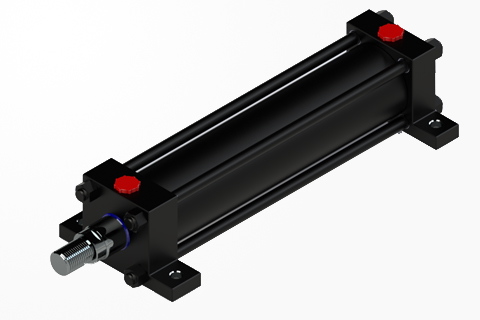

TIEROD CYLINDERS

At Genner we manufacture a wide variety of tierod hydraulic cyliders.

Tie rod hydraulic cylinders use high strength threaded steel rods to hold the two end caps to the cylinder barrel. Smaller cylinders usually use 4 tie-rods, but larger bore cylinders can use up to 20. Tie rod style cylinders has ease for after sales service as it can be completely disassembled for service and repair unlike a welded cylinder. It is usually used for running a lower pressure application, They are most often seen in light agricultural machinery applications and industrial factory applications.

Genner's Tierod Cylinder's Features:

  • Series: 2500 PSI Rated pressure, 3000 PSI Rated pressure
  • High performance Branded Seals
  • High Quality Cold Drawn steel tubes
  • High tensile, carbon alloy steel piston rods, plated and polished to a 0.2µm finish, Exceptional resistance to denting, scoring and external damages
  • High grade Ductile Cast iron Parts for high strength and durablity
  • High tensile strength tie rods with rolled threads for durability and are torque-loaded on assembly
  • Widely used in Agricultural applications
